(2018 – 2020) Porsche Panamera Turbo S E-Hybrid – The Ultimate Guide

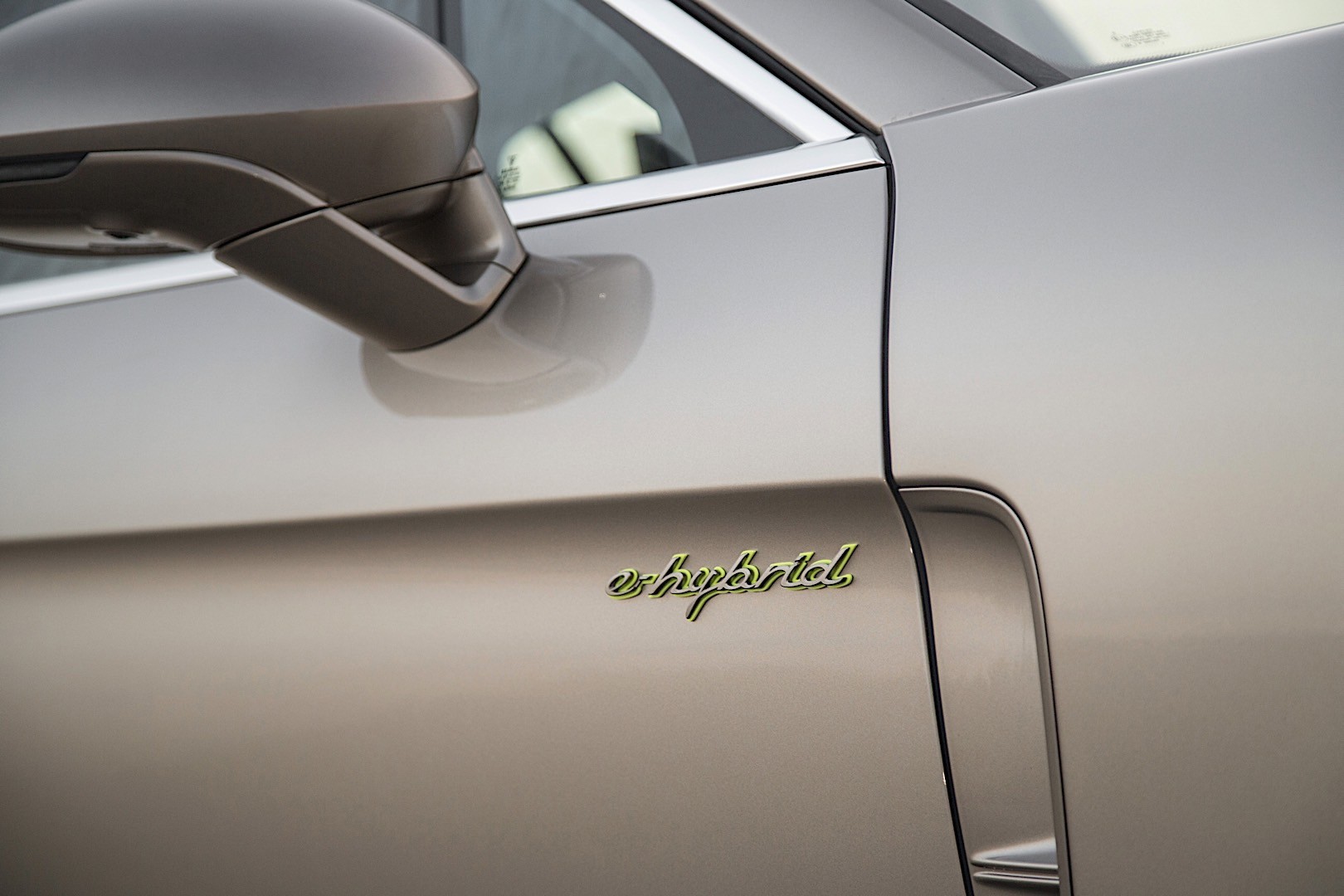

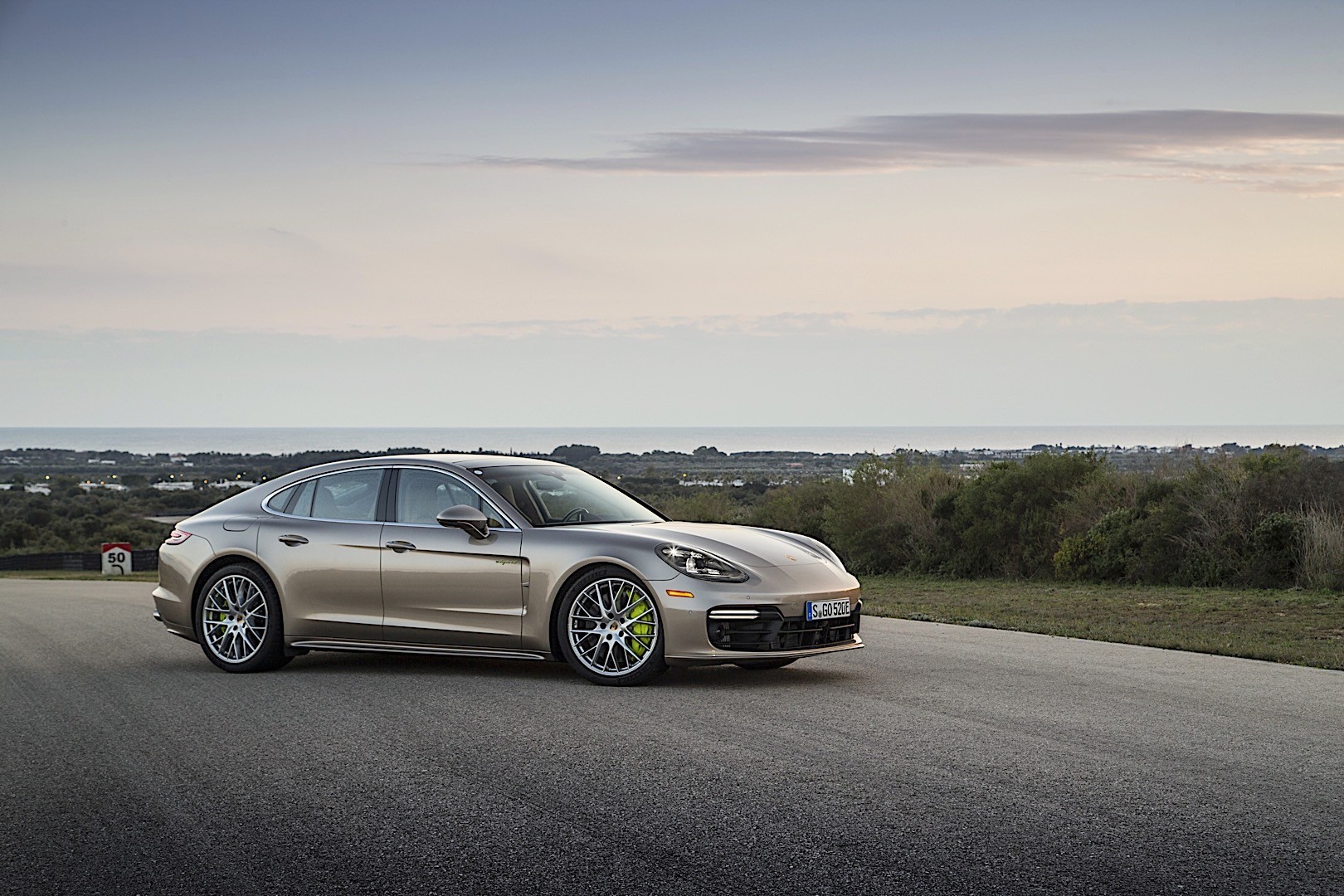

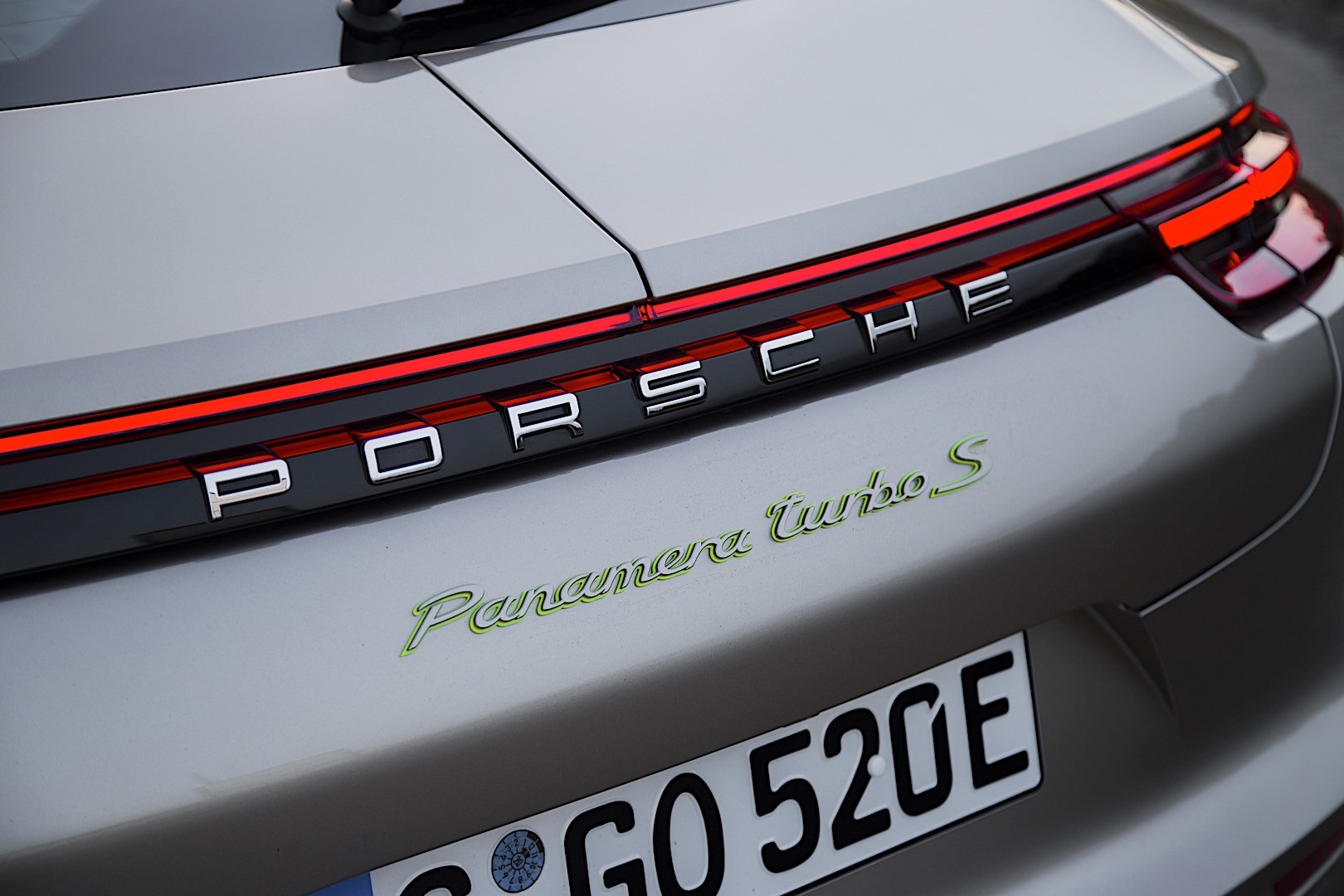

By combining a Porsche Panamera Turbo with the hybrid system already developed for the 4 E-Hybrid, the result was a 680 hp monster which was environmentally friendly. As a distinctive detail, the 4 E-Hybrid featured the electric-green brake calipers and the green “hybrid” badges on the fenders and on the trunk lid.

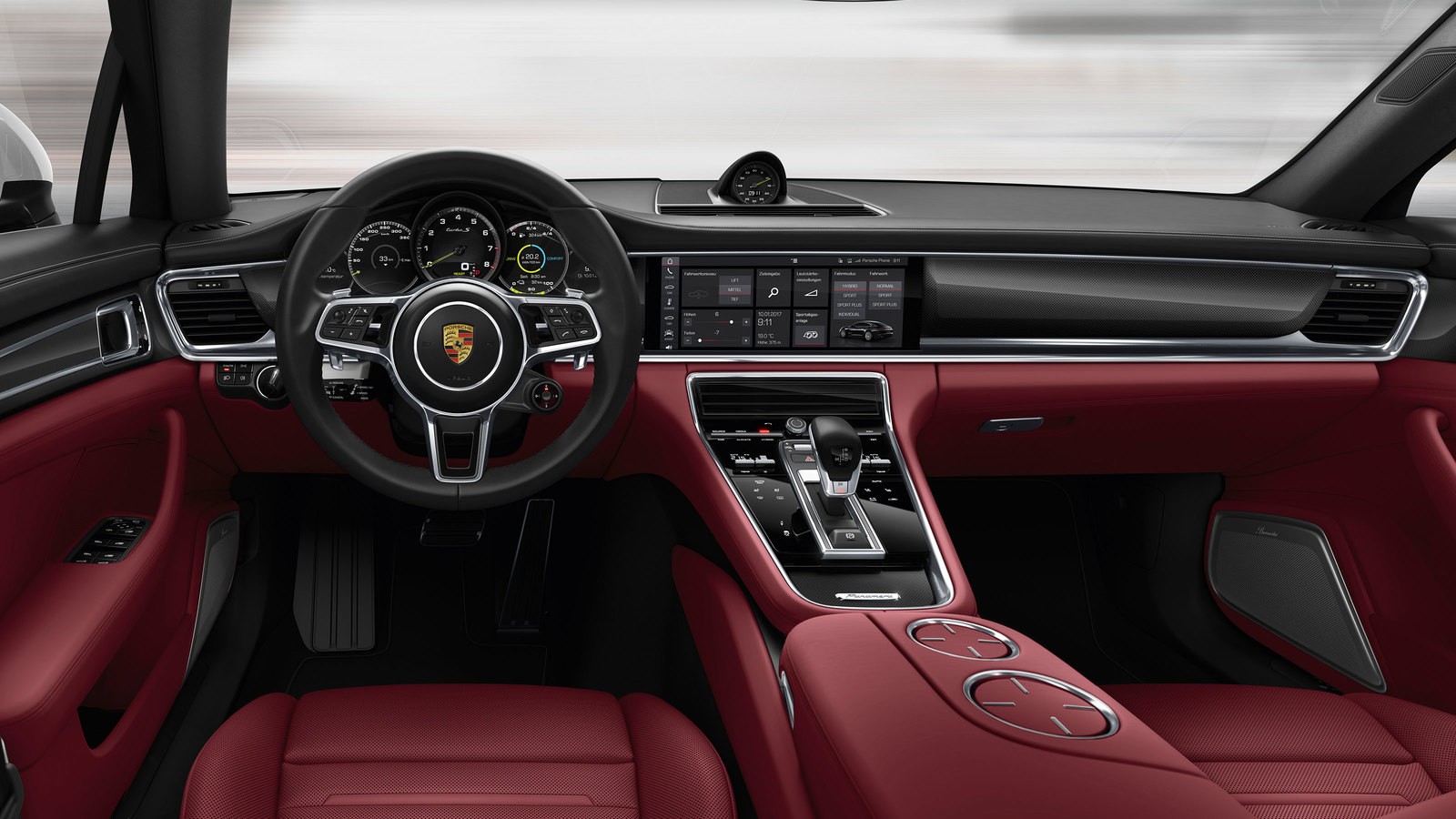

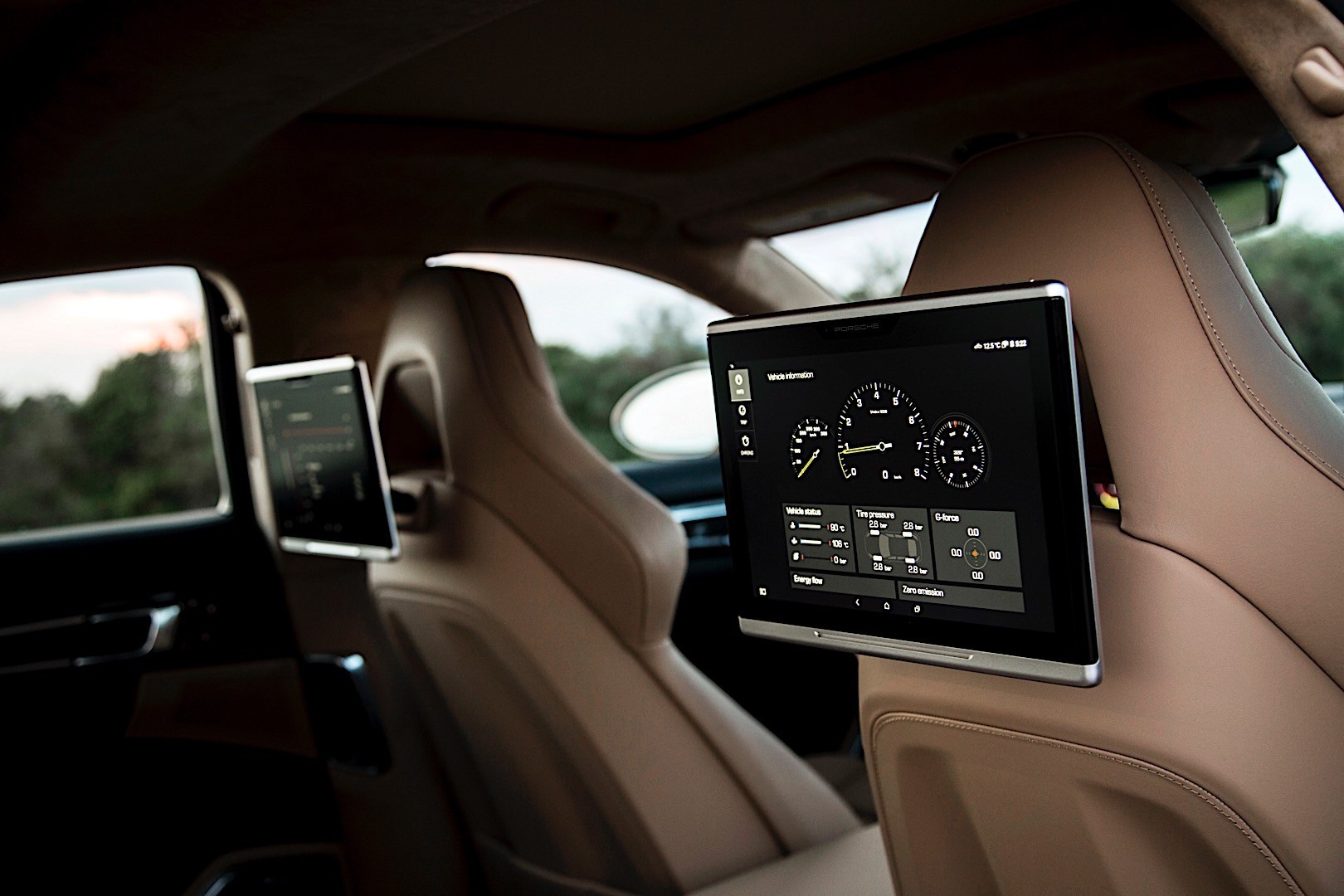

The interior was fitted with a wide 12.3” touch-screen as a central PCM (Porsche Communication Management) unit mounted at the same level as the steering wheel, on the center stack. It was for accessing various information and setting for the hybrid system as well.
The hybrid system deserved most of the attention. It was the first all-wheel-drive Panamera hybrid. It was fitted with a more powerful electric motor and a twin-turbo 4.0-liter V8 gasoline engine. The powerplant was fitted to an 8-speed PDK (dual-clutch) gearbox. Its predecessors were fitted with rear-wheel-drive only. The Panamera 4 E-hybrid always started in electric mode and turned on its gasoline unit later. That helped the car to achieve a 50 km (31 miles) of electric range. Its Li-ion battery pack could store up to 15.1 kWh.
Pictures
Press Release
Porsche continues to achieve high levels of performance over the long term. The new Porsche Panamera Turbo S E-Hybrid sees the sportscar manufacturer launch a plug-in hybrid model as the flagship of a model line for the first time. The four-litre V8 engine from the Panamera Turbo is combined with an electric motor, resulting in 500 kW/680 hp of system power and outstanding power delivery: Even when just above idle speed, the Panamera Turbo S E-Hybrid offers an 850 Nm of torque. That means it accelerates from zero to 100 km/h in 3.4 seconds and reaches a top speed of 310 km/h. The boost strategy of the all-wheel drive Panamera comes from the 918 Spyder super sportscar. In the New European Driving Cycle, the average fuel consumption is 2.9 l/100 km, and the new flagship Panamera can drive on fully electric power for up to 50 kilometres. The Panamera Turbo S E-Hybrid underlines the high importance of electromobility to Porsche.
Unique drive concept with V8 engine and electric motor
After the successful début of the Panamera 4 E-Hybrid, which uses a V6 engine together with an electric motor, Porsche is showing once again that hybrid technology has great performance potential. The new Porsche Panamera Turbo S E-Hybrid combines an electric motor (100 kW/136 hp) with a V8 engine (404 kW/550 hp). The decoupler installed in the Porsche hybrid module is actuated electromechanically by an electric clutch actuator (ECA), just like in the Panamera 4 E-Hybrid. The result is short response times and a high level of comfort. As in all other second-generation Panamera models, the fast-shifting Porsche Doppelkupplung (PDK) with eight gears is used to transmit the power to the standard adaptive all-wheel drive system Porsche Traction Management (PTM). The E-Performance drive accelerates the luxury saloon to 100 km/h in just 3.4 seconds and provides extraordinary tractive force at higher speeds. Combined with a top speed of 310 km/h, this means that the Porsche Panamera Turbo S E-Hybrid sets yet more new benchmarks in its class. The Panamera Turbo S E-Hybrid comes with air suspension as standard and offers a unique balance in this segment: the comfort of a luxury saloon paired with sportscar-level performance values.
The electric motor is supplied with power via a liquid-cooled lithium-ion battery with an energy capacity of 14.1 kWh. Within six hours, the high-voltage battery integrated in the rear is fully charged with 10 A via a 230-V connection. If the Panamera uses the optional 7.2-kW on-board charger and a 230-V connection with 32 A instead of the standard 3.6-kW charger, the battery is fully charged in just 2.4 hours. The charging process can also be started using a timer via Porsche Communication Management (PCM) or the Porsche Connect app (for smartphones and Apple Watch). Moreover, the Panamera Turbo S E-Hybrid is fitted with auxiliary air conditioning to cool or heat the passenger compartment even during charging.
Three-way combination of sportscar performance, comfort on long trips and efficiency
Performance, comfort and efficiency form a perfect three-way combination: The Porsche Panamera Turbo S E-Hybrid starts in the purely electric “E-Power” mode as standard, and the four-door sportscar drives locally over a distance of up to 50 kilometres with zero emissions. When a specific pressure point is passed in the accelerator pedal, or when the battery charge level drops below a minimum value, the Panamera switches to “Hybrid Auto” mode, at which point the power of both engines is available. Consumption in the New European Driving Cycle (NEDC) for plug-in hybrid models amounts to 2.9 l/100 km for super-grade petrol (66 g/km of CO2) and 16.2 kW/h/100 km for electric power.
Début with two wheelbases
The new flagship of the second Panamera generation will be launched in the European market in July 2017. Further markets will follow in the second half of 2017. The Panamera Turbo S E-Hybrid is celebrating its world première at the 2017 Geneva Motor Show. From the very beginning, the four-door Gran Turismo will also be offered in an Executive version, with a wheelbase extended by 150 millimetres.
As part of its standard equipment, the Porsche Panamera Turbo S E-Hybrid includes the Porsche Ceramic Composite Brake (PCCB), Porsche Dynamic Chassis Control Sport (PDCC Sport) including Porsche Torque Vectoring Plus (PTV Plus), Power Steering Plus and 21-inch alloy wheels in the 911 Turbo Design. The basic package also contains auxiliary air-conditioning, adaptive aerodynamic elements and three-chamber air suspension including Porsche Active Suspension Management (PASM). The long version is equipped with rear axle steering as standard. In Germany, prices for the Porsche Panamera Turbo S E-Hybrid start at EUR 185,736 including VAT. For the Porsche Panamera Turbo S E-Hybrid Executive, prices start at EUR 199,183.
