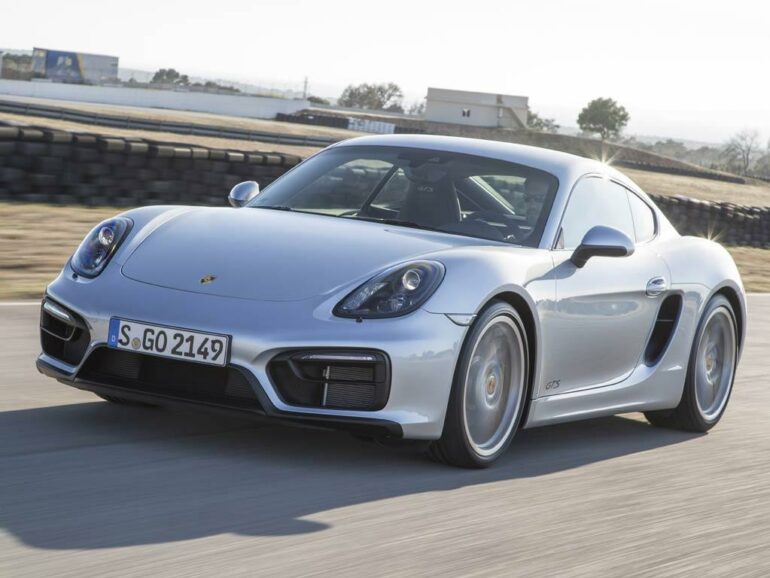

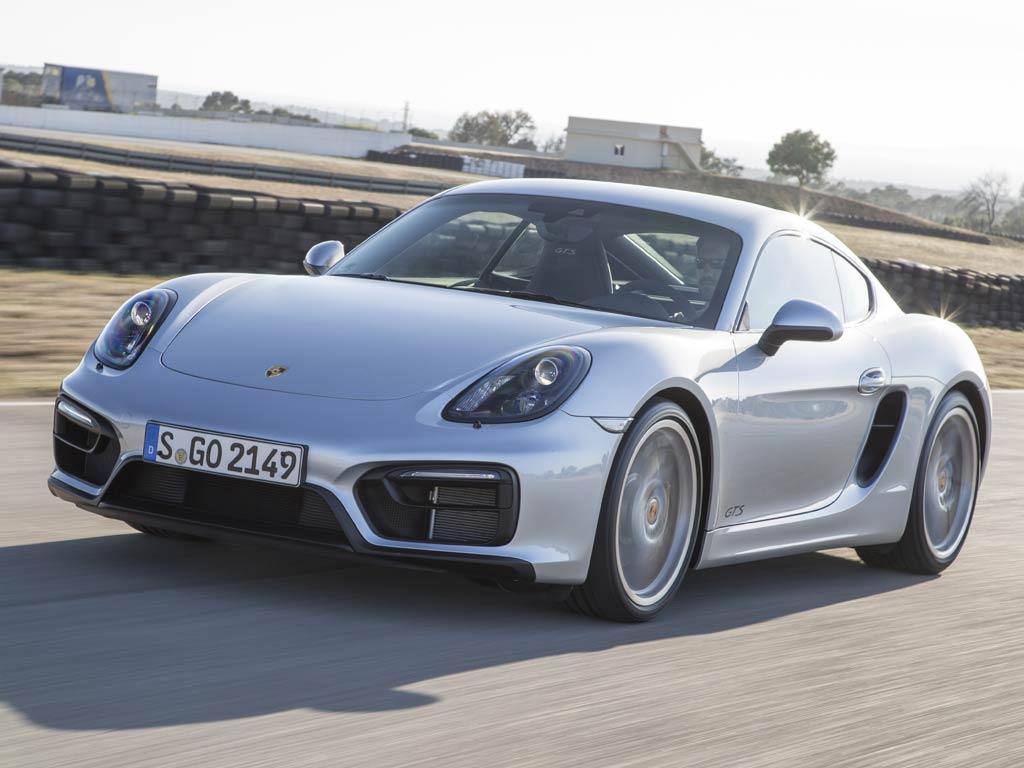

2014 Porsche Cayman GTS Technical Specifications
| Built At | Stuttgart, Germany |
| Engine | Flat-6 |
| Position | Mid, Longitudinal |
| Aspiration | Natural |
| Block Material | Aluminum |
| Valvetrain |
DOHC, 4 Valves per Cyl w/VVT & VarioCam Plus
|
| Fuel Feed | Direct Fuel Injection |
| Displacement | 3436 cc / 209.68 in³ |
| Bore | 97 mm / 3.8 in |
| Stroke | 77.5 mm / 3.1 in |
| Compression | 12.5:1 |
| Power | 330 bhp @ 6700 rpm |
| Torque | 272 ft lbs @ 4500 rpm |
| Specific Output | 98.95 bhp per litre |
| Bhp/weight | 257.58 bhp per tonne |
| Redline | 7800 |
| Body / Frame |
Unitary Steel & Aluminum Monocoque w/Aluminum Hood
|
| Driven Wheels | RWD |
| Wheel Type | 20-inch Carrera S-wheels |
| Front Tires | 235/35-20 |
| Rear Tires | 265/35-20 |
| Front Brakes |
Ventilated Discs w/4-Piston Aluminum Monobloc Calipers
|
| F Brake Size | 28 x 330 mm / 1.1 x 13.0 in |
| Rear Brakes |
Ventilated Discs w/4-Piston Aluminum Monobloc Calipers
|
| R Brake Size | 20 x 299 mm / 0.8 x 11.8 in |
| F Suspension |
MacPherson Struts w/Gas-Pressure Dampers, Anti-Roll Bar
|
| R Suspension |
Transverse Control Arms w/Coil Springs over Gas-Pressure Dampers, Anti-Roll Bar
|
| Curb Weight | 1320 kg / 2911 lbs |
| Wheelbase | 2475 mm / 97.4 in |
| Front Track | 1526 mm / 60.1 in |
| Rear Track | 1540 mm / 60.6 in |
| Length | 4374 mm / 172.2 in |
| Width | 1801 mm / 70.9 in |
| Height | 1281 mm / 50.4 in |
| Transmission |
6-Speed Manual or 7-Speed PDK Automatic
|
| Tran Clutch | 240mm |
| Gear Ratios |
3.31:1, 1.95:1, 1.41:1, 1.13:1, 0.95:1, 0.81:1
|
| Final Drive | 3.89:1 |
| 0 – 60 mph | 4.1 seconds |
| Top Speed | 174.5 mph |
| Quarter Mike | 12.50 seconds |
