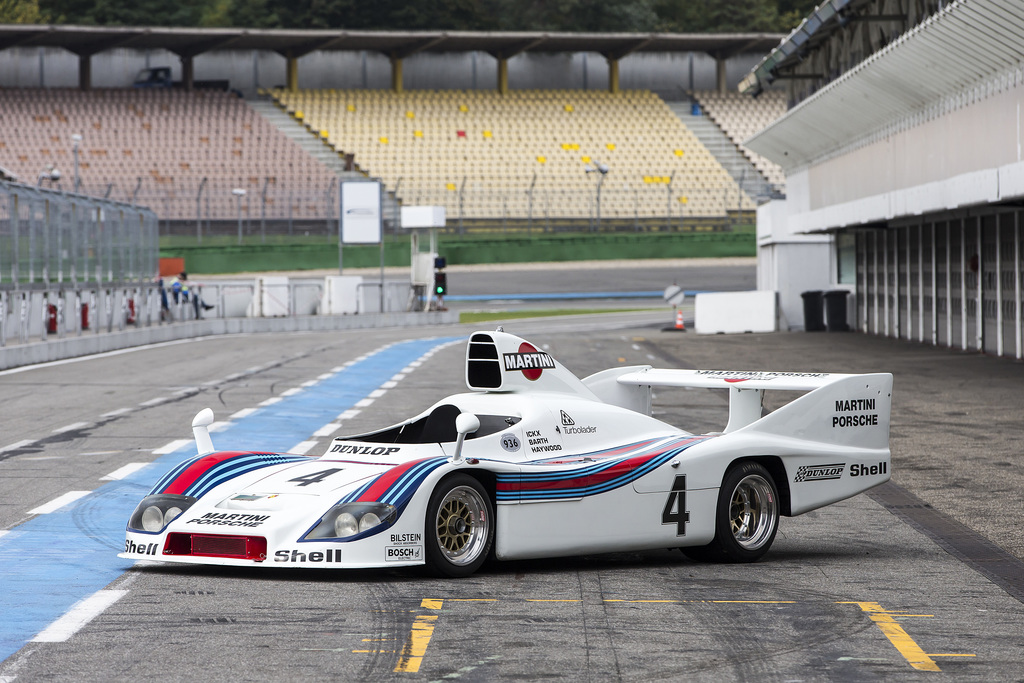

Porsche 936/77 Specifications
| Specs | 936/77 Spyder (1977) |
| Engine: | 6-cylinder boxer engine (four-stroke) + two turbochargers |
| Displacement: | 2142 cc |
| Bore × stroke: | 83.0 x 66.0 mm |
| Power: | 540 bhp @ 8000 rpm |
| Torque: | 361 ft lbs @ 6000 rpm |
| Compression: | 6.5: 1 |
| Valve control: | One overhead camshaft with chain drive each |
| Cooling: | Air cooling (fan) |
| Transmission: | 5-speed gearbox, limited slip differential , rear-wheel drive |
| Brakes: | Disc brakes (internally ventilated) |
| Front suspension: | Wishbones with longitudinal thrust struts, anti-roll bar |
| Rear suspension: | One lower wishbone and one upper and one lower longitudinal thrust strut |
| Front suspension: | one progressively acting coil spring per wheel with gas pressure shock absorber |
| Rear suspension: | one progressively acting coil spring per wheel with gas pressure shock absorber |
| Body: | Aluminum tubular space frame with plastic body |
| Track width front / rear: | 1530/1480 mm |
| Wheelbase : | 2410 mm |
| Tires rim: | VA: 265/565 × 15 on 10.5J × 15, HA: 340/600 × 15 on 15J × 15 |
| Dimensions L × W × H: | 4150 × 1930 × 1010 mm |
| Empty weight : | 700 kg |
| Top speed: | 360 km / h / 218 mph |
