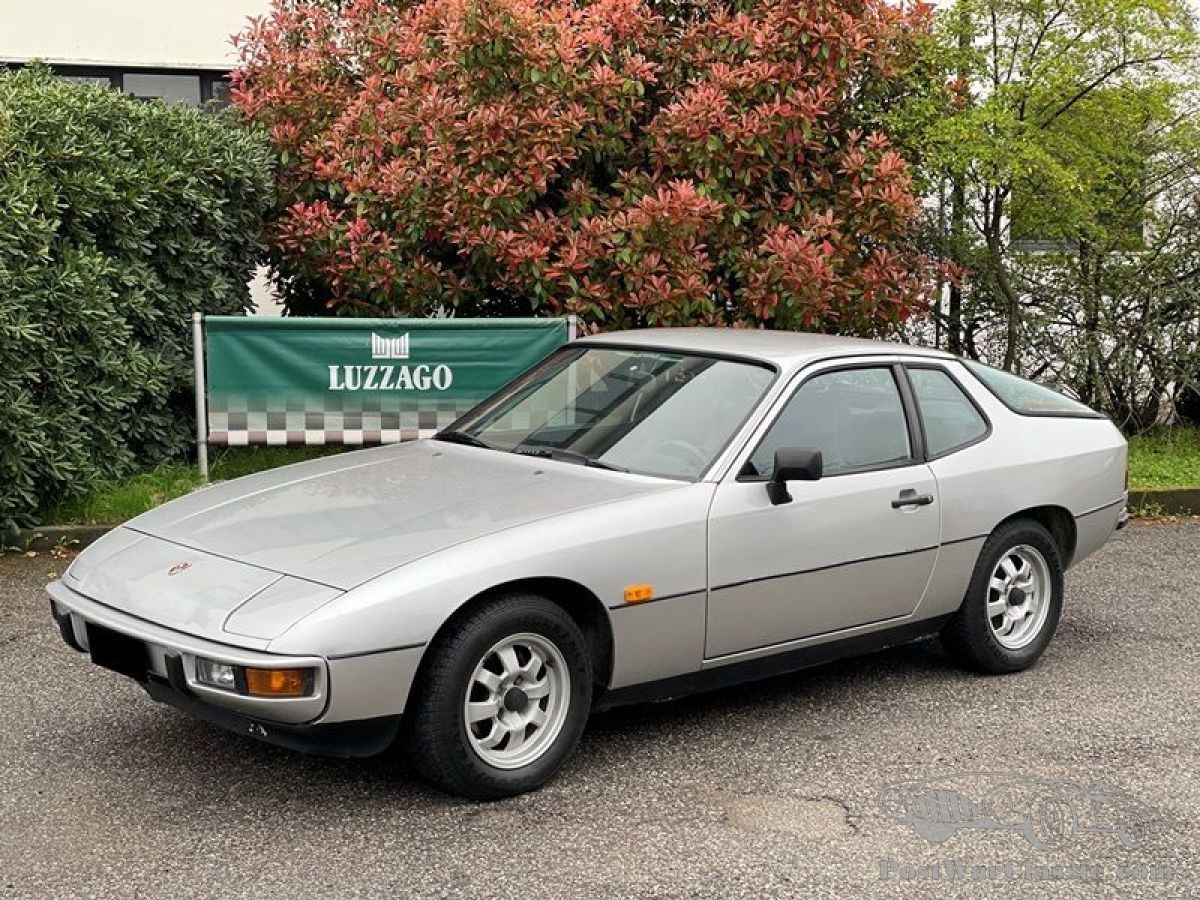

1980 Porsche 924 Technical Specifications
| TYPE | Inline 4 |
| INDUCTION | Normally Aspirated |
| COOLING | Water-cooled |
| VALVETRAIN | Single overhead camshaft |
| INJECTION | Port injection |
| BORE X STROKE |
3.41 in/86.5 mm x 3.32 in/84.4 mm
|
| DISPLACEMENT | 121.02 cu-in/1,984 cc |
| HORSEPOWER | 110 bhp @ 5750 rpm |
| TORQUE | 122 lb-ft @ 3500 rpm |
| MAX RPM | 6500 |
| COMPRESSION RATIO | 8.5:1 |
| TRANSMISSION | 5-speed manual, 3-speed automatic |
| TYPE |
Front-engined, rear-wheel drive
|
| CURB WEIGHT | 2,623 lbs. |
| HEIGHT | 50.00 in/1,270 mm |
| GROUND CLEARANCE | 4.92 in/125 mm |
| LENGTH | 170.08 in/4,320 mm |
| WHEELBASE | 94.49 in/2,400 mm |
| WIDTH | 66.42 in/1,687 mm |
| TRACK FRONT | 55.83 in/1,418 mm |
| TRACK REAR5 | 4.02 in/1,372 mm |
| DRAG COEFFICIENT | 0.36 |
| WHEEL SIZE FRONT | 14 x 5.5 |
| WHEEL SIZE REAR | 14 x 5.5 |
| TIRE SIZE FRONT | 165HR-14 |
| TIRE SIZE REAR | 165HR-14 |
| CALIPER FRONT | Floating 1-piston |
| CALIPER REAR | Drums |
| DISC TYPE FRONT | Solid |
| DISC TYPE REAR | Drums |
| DISC SIZE FRONT |
10.10 in/256.5 mm x.50 in/12.7 mm
|
| DISC SIZE REAR |
9.00 in/228.6 mm x 1.50 in/38.1 mm
|
| 0 TO 60 MPH | 9.9 sec |
| TOP SPEED |
119 mph manual/115 mph automatic
|
| MPG CITY | N/A |
| MPG HIGHWAY | N/A |
| MPG COMBINED | N/A |
| FUEL TANK CAPACITY | 17.4 U.S. gallons |
| REQUIRED OCTANE | Regular unleaded (87+) |
