| Model |

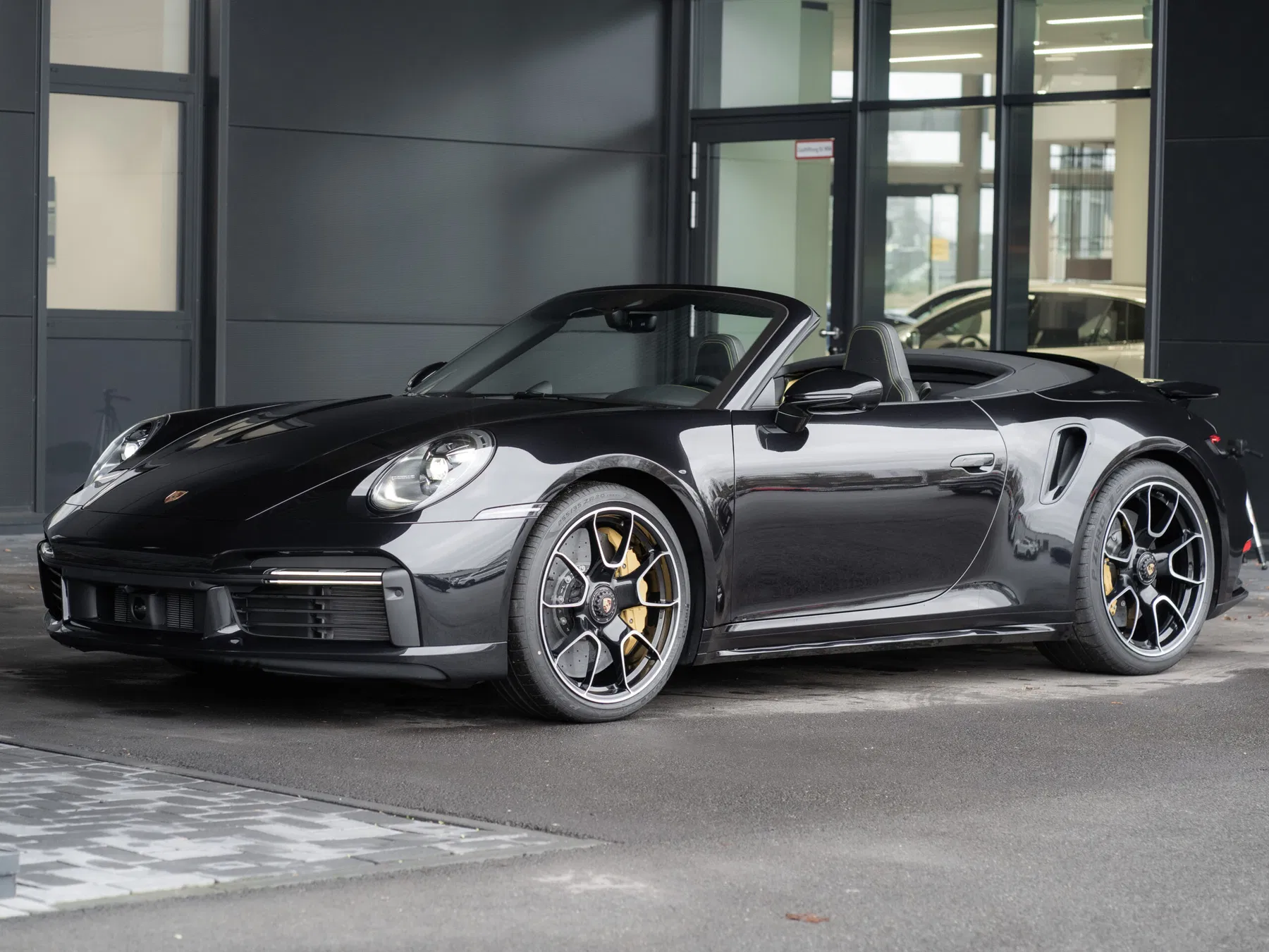

911 Turbo S Cabriolet |
| Engine layout |
Rear Engine |
| Design and cylinders |
Twin-turbocharged boxer 6 |
| Cylinders |
6 |
| Valves per cylinder |
4 |
| Construction |
Aluminum crankcase and heads |
| Fuel injection |
Direct Fuel Injection (DFI) |
| Fuel |
Premium |
| Displacement |
3,745 cc |
| Displacement (Liters) |
3.7451 |
| Bore |
102.0 mm |
| Stroke |
76.4 mm |
| Maximum power output @ engine speed |
640 bhp @ 6,750 rpm |
| Maximum torque @ engine speed |
590 ft lbs @ 2,500-4,000 rpm |
| Maximum engine speed |
7,200 |
| Compression ratio (tolerance +/- 0.3) |
8.7:1 |
| Output per liter |
168.4 hp |
| Lubrication |
Integrated dry-sump |
| Power to weight ratio (lb/hp) |
6 |
| Drivetrain |
Active all-wheel drive |
| Chassis & Suspension |
|
| Body |
Monocoque lightweight body in a combination of steel, aluminum, and magnesium |
| Front Axle |
MacPherson strut with anti-roll bar |
| Rear Axle |
Aluminum multi-link with anti-roll bar |
| Steering System |
Variable ratio electromec. power steering |
| Steering Ratio |
14.1:1 (on-center) to 12.5:1 |
| Turning Circle |
35.8 ft |
| Brakes & Wheels |
|
| Caliper type |
Aluminum monobloc fixed-caliper brake |
| Rotor material |
Carbon-ceramic composite |
| Caliper color |
Yellow |
| Number of pistons (front/rear) |
10 / 4 |
| Rotor diameter (front/rear) mm |
420 mm / 390 mm |
| Rotor thickness (front/rear) mm |
40 mm / 32 mm |
| Standard wheels |
20″ / 21″ Turbo S |
| Wheels (front/rear) |
9J x 20″/11.5J: x 21″ |
| Tires (front/rear) |
255/35 ZR 20 / 315/30 ZR 21 |
| Transmission |
|
| Number of gears |
8 |
| Transmission type |
8-speed dual-clutch PDK |
| Ratios |
|
| 1st |
4.89 |
| 2nd |
3.17 |
| 3rd |
2.15 |
| 4th |
1.56 |
| 5th |
1.18 |
| 6th |
0.94 |
| 7th |
0.76 |
| 8th |
0.61 |
| Reverse |
3.99 |
| Final drive ratio front axle |
3.33 |
| Rear Axle Ratio |
3.02 |
| Clutch 1/ Clutch 2 diameter (inches) |
8.7 / 6.6 inches (PDK) |
| Dimensions, Aerodynamics, & Weight |
|
| Length (inches/mm) |
178.6 in. / 4535 mm |
| Wheelbase (inches/mm) |
96.5 in. / 2450 mm |
| Width w/ mirrors (inches/mm) |
79.7 in. / 2024 mm |
| Width w/o mirrors (inches/mm) |
74.9 in. / 1900 mm |
| Height with standard PASM suspension (inches/mm) |
51.3 in. / 1301 mm |
| Height with optional PASM Sport Suspension (inches/m |
50.8 in. / 1290 mm |
| Track width front (inches/mm) |
62.4 in. / 1583 mm |
| Track width rear (inches/mm) |
63.0 in. / 1600 mm |
| Cargo area volume (cu.-ft.) front trunk |
128 l / 4.5 cu.-ft. |
| Cargo area volume (cu.-ft.) rear seats |
163 l / 5.75 cu.-ft. |
| Fuel tank capacity refill volume (gal) |
17.6 gal. |
| Curb weight (lbs) |
3790 lbs. |
| Gross Vehicle Weight (lbs) |
4586 lbs. |
| Performance |
|
| Acceleration 0-60 PDK (with Sport Chrono Package) |
2.7 sec. |
| Quarter mile time PDK (sec) |
10.6 sec. |
| Top track speed PDK (mph) |
205 mph |
| Fuel consumption |
|
| City |
15 MPG |
| Highway |
20 MPG |
| Combined |
17 MPG |
