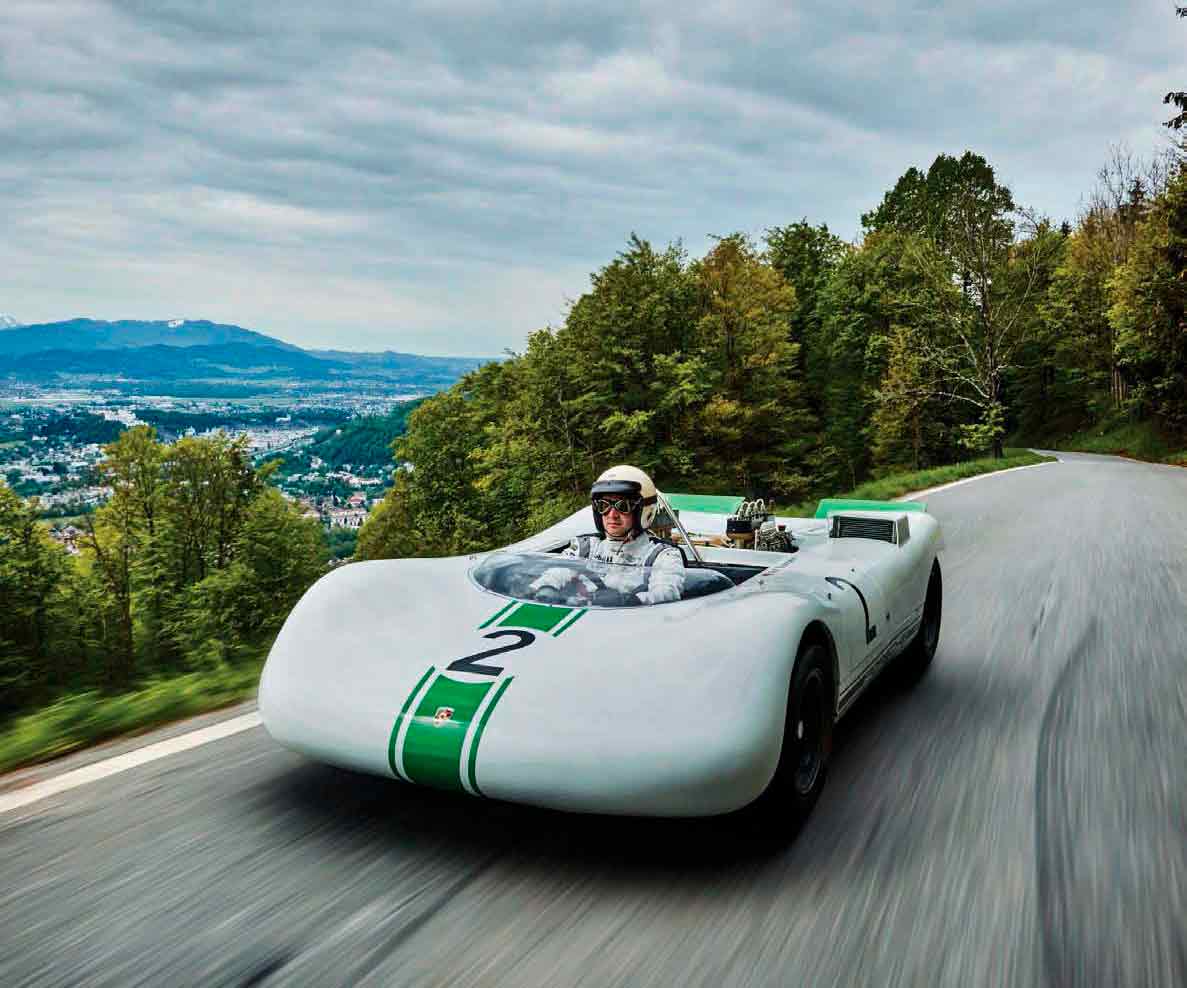

Porsche 909 Bergspyder Specifications
| Configuration | Type 771/0 Flat 8 |
| Location |
Mid, longitudinally mounted
|
| Construction |
cast-aluminium block, aluminium alloy head
|
| Displacement |
1,981 cc / 120.9 cu in
|
| Bore / Stroke |
76.0 mm (3 in) / 54.6 mm (2.1 in)
|
| Compression | 10.4:1 |
| Valvetrain |
2 valves / cylinder, DOHC
|
| Fuel feed |
Bosch Fuel Injection
|
| Lubrication | Dry sump |
| Aspiration |
Naturally Aspirated
|
| Power |
275 bhp / 205 kW @ 9,000 rpm
|
| Torque |
211 Nm / 156 ft lbs @ 7,100 rpm
|
| BHP/Liter | 139 bhp / liter |
| Body |
fibreglass panels
|
| Chassis |
aluminium spaceframe
|
| Front suspension |
double wishbones, coil springs over dampers, anti-roll bar
|
| Rear suspension |
top links, reversed lower wishbones, twin trailing-arms, coil springs over dampers, anti-roll bar
|
| Steering | rack-and-pinion |
| Brakes | discs, all-round |
| Gearbox | 5 speed Manual |
| Drive |
Rear wheel drive
|
| Weight |
385 kilo / 849 lbs
|
| Length / Width / Height |
3,440 mm (135.4 in) / 1,800 mm (70.9 in) / 710 mm (28 in)
|
| Wheelbase / Track (fr/r) |
2,260 mm (89 in) / N/A / N/A
|
| Power to weight | 0.71 bhp / kg |
