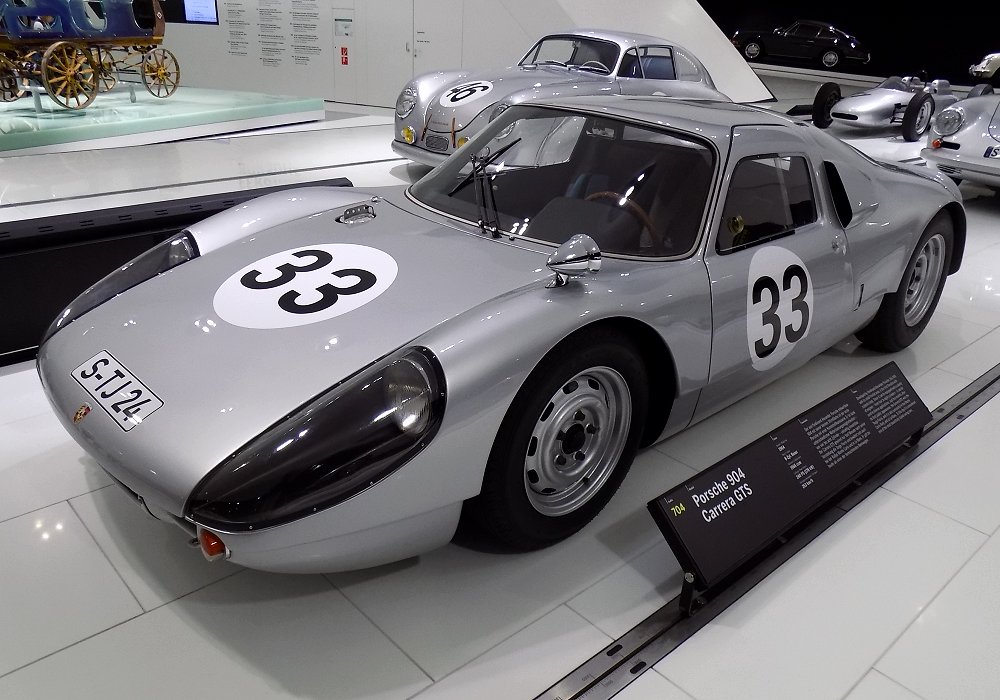

Porsche 904/8 Carrera GTS Specifications
| Engine | Type 771 B8 |
| Engine Location | Mid, longitudinally mounted |
| Engine Construction | aluminium block and head |
| Displacement | 1,981 cc / 120.9 cu in |
| Valvetrain | 2 valves / cylinder, DOHC |
| Fuel feed | 4 Carburettors |
| Lubrication | Dry sump |
| Aspiration | Naturally Aspirated |
| Power | 240 bhp (178 kW) at 8700 rpm |
| BHP/Liter | 121 bhp / liter |
| Body | fibreglass |
| Chassis | steel sheet box-section ladder frame |
| Front suspension | double wishbones, coil springs over dampers, anti-roll bar |
| Rear suspension | reversed double wishbones, twin trailing arms, coil springs over dampers, anti-roll bar |
| Steering | rack-and-pinion, electro-hydraulic power assistance |
| Brakes (fr/r) | Porsche-ATE discs |
| Gearbox | 5 speed Manual |
| Clutch | Single, dry plate |
| Drive | Rear wheel drive |
| Wheelbase / Track (fr/r) | 2,300 mm (90.6 in) / 1,314 mm (51.7 in) / 1,312 mm (51.7 in) |
| Power to weight | 0.43 bhp / kg |
| Top Speed | 161 mph |
